相较于过往，当代建筑在功能上面临着更大的不确定性。在一座建筑的生命周期中，功能的持续变化已经成为一种新常态。为此，双擎大厦采用一种系统化的设计方式，整合建筑的空间、结构、表皮与设备，建构一种具有前瞻性和通用性的空间组织方式，达成建筑的灵活性与可适应性。

In terms of function, contemporary buildings in comparison with those in the past are often faced with a higher level of uncertainties. Within the life cycle of a building, the potential for change of function and pattern of use have become the new normal state. Through a systematic approach, the Exo Towers integrates the spatial layout, structural form, building envelop and mechanical services into a whole , creating a forward-looking and universal space framework which facilitates a building with a higher degree of flexibility and adaptability.

——Lead Architect

1.0 项目背景：可适应性的建筑策略
1.0 Background: An Architectural Strategy of Adaptability

“双擎大厦”是我们对瑞丰数字金融中心的昵称，它传神而准确地抓住了建筑最为鲜明的结构特征。在建筑的南、北立面，各有一对从地面升起直插云霄的巨柱，大有擎天架海之势，这便是达“双擎大厦”名称的由来。双擎大厦位于浙江绍兴镜湖新区的核心位置，建筑面积约7.4万平米，于2021年竣工。建筑由两栋塔楼构成，分别是15层和21层，双塔之间由一个70米通高的玻璃中庭连接。南、北塔楼高度的变化不仅形成了一个动感的天际线, 而且创造了一个令人舒缓的中庭空间。

With a pair of mega columns adorning the north and south facade, combined with an “exoskeleton” of structural elements, the Exo Towers is the name given to the Ruifeng Digital Finance Center as it perhaps most accurately reflects these defining structural features of this building. Located in the central position of Jinghu New District, Shaoxing, Zhejiang Province and completed in 2021, the Exo Towers covers an area of 74,000 m2. The building is comprised of two towers, being 15 and 21-storey high respectively, and linked together by a 70m-high central glazed atrium. The change of heights between the two towers not only defines a dynamic skyline, but also creates this breathtaking atrium space.

▼项目场地及周边航拍图，Aerial view of the project site and surrounding areas

▼南北双塔与玻璃中庭，North and South twin towers with glass atrium

▼双擎大厦主立面，Main facade of the building

回到项目伊始的2013年，来自中国互联网公司的移动支付和无现金交易开始对传统的金融业形成冲击。压力之下，金融机构亟待通过业务调整与机构重组来应对新的数字化挑战。因此，自项目启动后，功能布局的不确定性将成为一个持续数年的重要背景。针对这种情况，我们对双擎大厦的办公空间提出了灵活性和通用性的设计原则，以适应未来办公模式的变化。为此建筑采用结构外置的方式，大幅减少了标准层的结构柱数量，创造出大面积的开敞办公空间，辅以可以灵活布线的架空网格地板，利于未来功能区的灵活划分。与此同时，外置的结构体系形成了对于力学的真实表达，赋予了空间秩序，界定了建筑的尺度、形式和节奏，容纳了人们的活动场景。这种空间与结构的组合方式，构成了双擎大厦突出的艺术表现力。

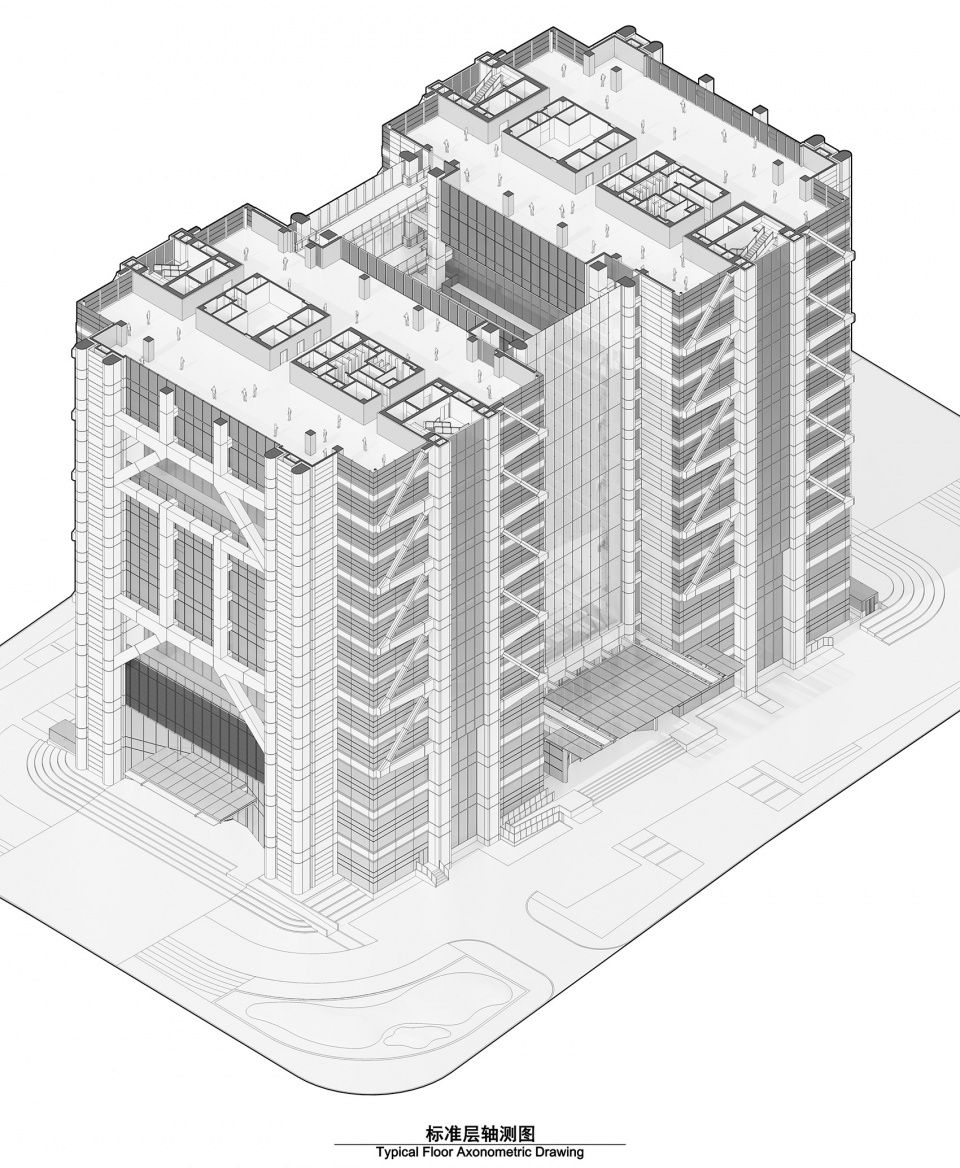

▼标准层轴测图，Typical floor axonometric drawing

Around the same time as the project began in 2013, the nature of banking underwent a rapid transition , with mobile payments and cashless transactions from Chinese Internet companies becoming the norm. To cope with this rapid change, there was a pressing need for financial institutions to cope with new digital challenges through business adjustment and organizational restructuring. Against this background of uncertainty, to agree and design the functional layout has been a determining factor for a number of years since the initiation of the project. To allow for future changes in working patterns, the design principles of flexibility and versatility were central to the design of the office layout. Hence this building utilizes an external structural system that greatly reduces the number of structure columns of the typical floor, creating large and open office space combined with a raised floor for flexible wiring, allowing for the ongoing flexible division of functional layout in the future. In addition the external structural system not only forms the real expression of mechanic and orders the space, but also defines the scale, form and rhythm of the building, ultimately accommodating all of the unique requirements and daily activities of those people who use this space. The Exo Towers therefore derives its architectural language from the manner in which the space and structure are completely integrated.

▼ 结构外置，The outer structure

2.0 整合式设计：一种基于几何学的系统化设计逻辑
2.0 Integrated Design: A Geometry-based Systematic Design Logic

双擎大厦作为大型综合性办公建筑，若要有效地组织所有建筑元素，协调所有设计方和承包方，其设计逻辑必须是综合性和系统性的，即所谓的“整合式设计”。双擎大厦的建筑形体基于一套1.5m x 1.5m的模数网格体系，由此定位和划分出空间、结构、表皮和设备这四个相互定义、互为依存的建筑系统，形成了设计团队之间的分工与协作界面。

In order to effectively organize all architectural elements and coordinate all professional parties, as large comprehensive office building like the Exo Towers should adopt a comprehensive and systematic design logic, an “integrated design” as such. Therefore, a 1.5m x 1.5m modular grid system is utilized to regulate the architectural form, position and define the spatial layout, structural form, building envelop and MEP services, facilitating mutually dependent and defined systems through collaborative interfaces.

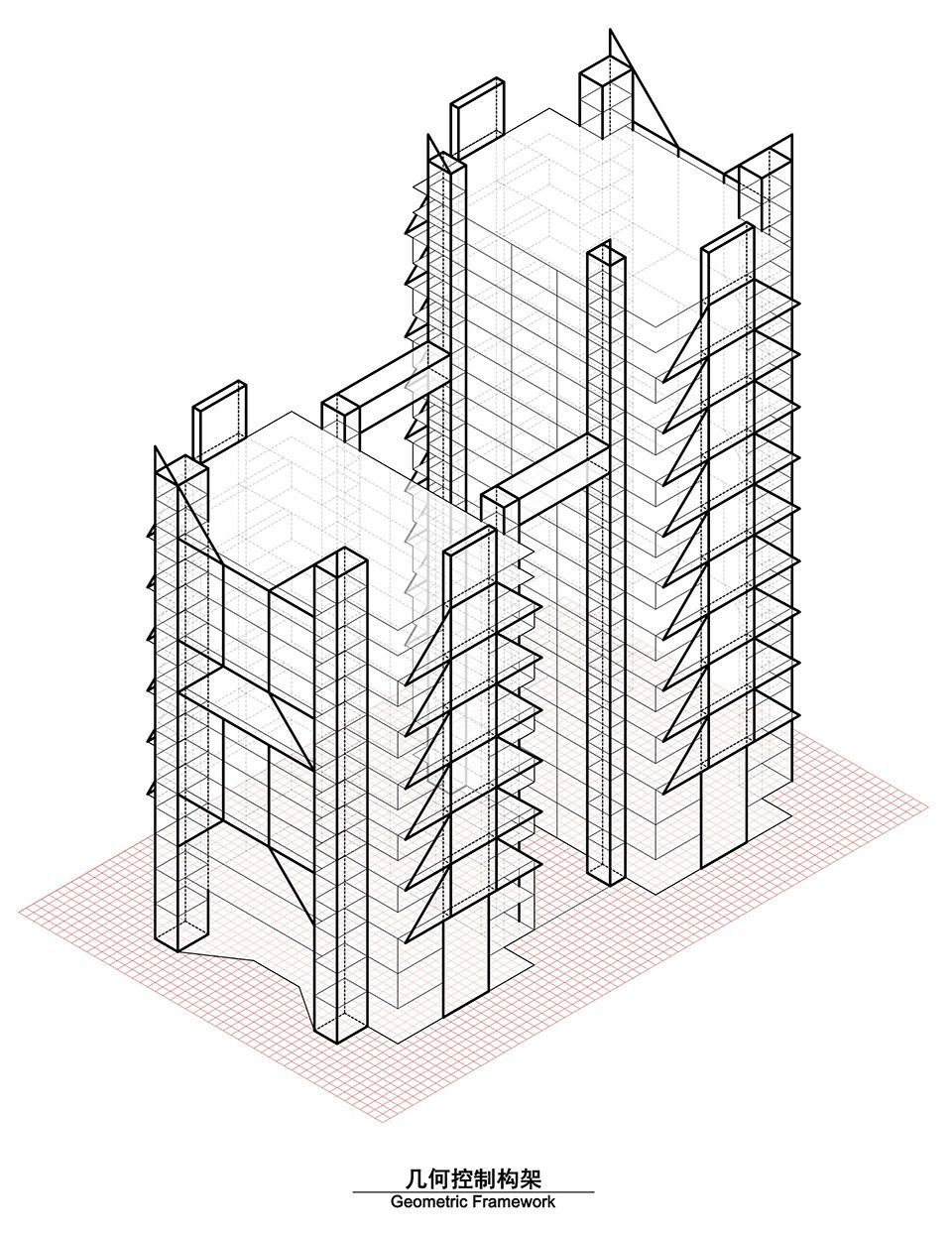

▼几何控制构架，Geometric framework

由于采用了高度预制化的设计与建造方式，双擎大厦的工地犹如一座拼装现场，大幅减少了现场的湿作业环节。根据总包反馈，双擎大厦主体施工期间的现场日均工人数量约为80人，相较于同等规模的常规建筑工程减少了1/3人数。

Due to the highly prefabricated design and construction methods, the whole construction site had the appearance of a clean and well-ordered assembly line, greatly reducing the on-site wet operations. According to the feedback from the main contractor, the average number of daily workers on the site during the construction of the Exo Towers was about 80 people, which is a reduction of a third when compared with a conventional construction site of a similar scale.

▼北塔的3组结构与空间组团，Triple structural and spatial clusters of the North Tower

▼南塔的2组结构与空间组团，double structural and spatial clusters of the South Tower

▼双层通高的共享空间以及户外露台，Double-height shared Spaces and outdoor terraces

▼无角柱遮挡的全景办公视野，Panoramic office view without corner column occlusion

3.3 大堂中庭
3.3 Entrance Hall Atrium

在两座塔楼之间，是70米通高的玻璃中庭，这是整座大楼的空间核心。中庭底部是一个双层台地式的入口大堂，其中首层为前台接待，二层为休息等待区。中庭两侧塔楼的1-3层设有银行对外营业厅，4层以上为内部办公区及附属设施。中庭西侧布置有6个空中廊桥连接两座塔楼，在视觉上也将中庭切分为更加宜人的尺度。中庭顶部悬吊有云朵造型的穿孔遮阳板，营造出一种如薄纱般微妙的光线扩散效果。中庭东侧采用通高的索网玻璃幕墙，强化了建筑内外的通透性。阳光从中庭的东、西两侧和屋顶射入，使得整个空间沐浴在自然光线之下。两座塔楼面向中庭的办公区域，都可以获得良好的景观视野与自然采光。

The 70m full-height glazed atrium between the two towers is the spatial core of the whole building. A 2-storey terraced entrance lobby is at the bottom of the atrium. The reception is on the first floor; the rest and waiting area is on the second floor. The banking hall is arranged on Floor 1-3 of the towers on both sides of the atrium. Internal office and ancillary facilities are on the 4th floor and above. Along the west facade, six sky bridges span between the two towers and in breaking down the scale of the atrium both visually and socially enhance the building’s horizontal connections. Cloud-shaped perforated ceiling panels are suspended at the top of the atrium, creating a gauze-like delicate light diffusion effect. A full height cable-net glass curtain wall is used for the east facade of the atrium, reinforcing the transparency of the entrance to the atrium and the dynamic internal spaces of the two towers. The atrium spaces are flooded with natural daylight from the east and west facades, in addition to the roof lights. Every floor in each tower thus receives daylight from two directions, outside and inside, considerably enhancing the internal ambience and working conditions.

▼双塔之间的玻璃中庭，Glass atrium between the twin towers

▼玻璃中庭外观细部，Exterior details of glass atrium

站在中庭底部仰望，由立面网格所形成的强烈透视关系，营造出一种时空穿梭的运动感和科幻感。随着一天当中光线的变化，玻璃的反射与透射也呈现出不同的质感，在冷调与暖调之间转换。由空中廊桥向东远眺形成了一个有趣的视角，透过索网幕墙望见远处真实的城市天际线，而两侧塔楼的玻璃幕墙分别映出对面天际线的镜像，实与虚的结合犹如拼贴画一般重构了一幅连续的城市天际线。

▼大堂首层前台接待区，Reception area in the lobby

▼大堂两侧1-3层的营业厅，The lobby is flanked by 3 floors of business halls

Looking upwards from the bottom of the atrium, the strong perspective relation formed by the facade grid creates a sense of movement, akin to the sensation of travelling through time and space. With the changes in light in a day, the reflection and transmission of the glass also present different tones, thus juxtaposition of cool tones and warmth is experience throughout the passing of time. One interesting view is looking eastwards from a sky bridge when you can see the real urban skyline in the distance through the cable-net facade. With an addition effect of the mirror image of the opposite skyline being reflected on the glass facades of the two towers, respectively. Like a collage, the combination of the real and the virtual reconstructs a continuous urban skyline.

▼中庭仰视：由立面网格形成的透视线，Perspective lines formed by the grid of the facade

▼中庭晨光，Morning light through the atrium

▼虚实结合的城市天际线重构，Reconstruction of urban skyline combining virtuality and reality

4.0 表皮与设备：建筑的精细化设计
4.0 Building Envelop and MEP Services: Attention to Detail

4.1 整体策略
4.1 Overall Strategy

在工作中，我们更倾向于使用“表皮”这个概念，因为它更宽泛地涵盖了建筑实体与空间界面的构造层，既包含通常用在室外的建筑幕墙，也包含室内精装修的硬装部分。我们日常可见可触的建筑外观，除了表皮以外，还包括了各种设备终端（如：灯具、风口、开关、插座、喷淋、传感器、检修口和维护设备等）。因此建筑的细节与品质很大程度上取决于表皮与设备终端的呈现，即以一种和谐的方式将两个系统整合在一套秩序之中。

In our practice, we tend to use the concept “envelop” for it includes more broadly the tectonic layer at the interface between the building’s physical entity and the space. Both the building curtain walls that are usually used for the exterior and the interior finishes with their related tectonic layers are a form of “envelop”. In addition to the envelop, aspects of the building that can be seen and touched also includes the MEP terminal devices (such as luminaires, vents, switches, sockets, sprinklers, sensors, access doors and maintenance equipment). Therefore, the details and quality of a building largely depend on the presence of the envelop and service terminals, in other words, how the two systems are harmoniously integrated into one seamless order.

作为双擎大厦的方案设计方，除了常规的建筑专业内容，我们还主导了建筑外幕墙、中庭幕墙和建筑维护系统的方案设计，提供了具有清晰指导作用的幕墙图纸和数字模型。得益于我们采取的“内与外”的整体设计策略，双擎大厦的室外表皮与中庭的室内表皮采用统一的设计语言，保证了建筑内外空间的延续性。

As the lead architects of the Exo Towers, in addition to the conventional scope, we also guided the design of the exterior curtain wall, atrium curtain wall and the building maintenance system, delivering curtain wall drawings and digital models that provide clear guidance for the consultants. Benefited by the “internal and external” integrated design strategy we adopted, a unified design language is used in the exterior and interior envelopes, ensuring the integrity of outside and inside.

▼南立面双柱，Double columns on the south facade

4.2 外部构架覆板
4.2 External Structure Cladding

建筑形体的表现和材料的选择反映出立面的等级关系。外部构架，作为本项目最具特色的部分，其覆板采用了一种名为“亚麻星光/Linen Star”的特殊纹理不锈钢板。双擎大厦也是中国首例、全球第二例采用这种特殊材料的项目。包覆这种材料的外部构架可以柔和地反射周边环境，并与全天不断变化的光线产生互动，尤其在阳光之下呈现出一种淡金色调，打破了不锈钢材料给人的冰冷印象。

Architectural expression and selection of materials reflect the hierarchy for the facade. The cladding of the external structure, perhaps the most characteristic part of this project, adopts a specially textured stainless steel plate called “Linen Star”. The Exo Towers is the first building in China and the second in the world to use this special material. The external structure cladded with this material can gently reflect the surroundings and interact with the light that changes throughout the day. In particular, it shows a pale gold-tone under the sun, breaking the cold impression on stainless steel materials.

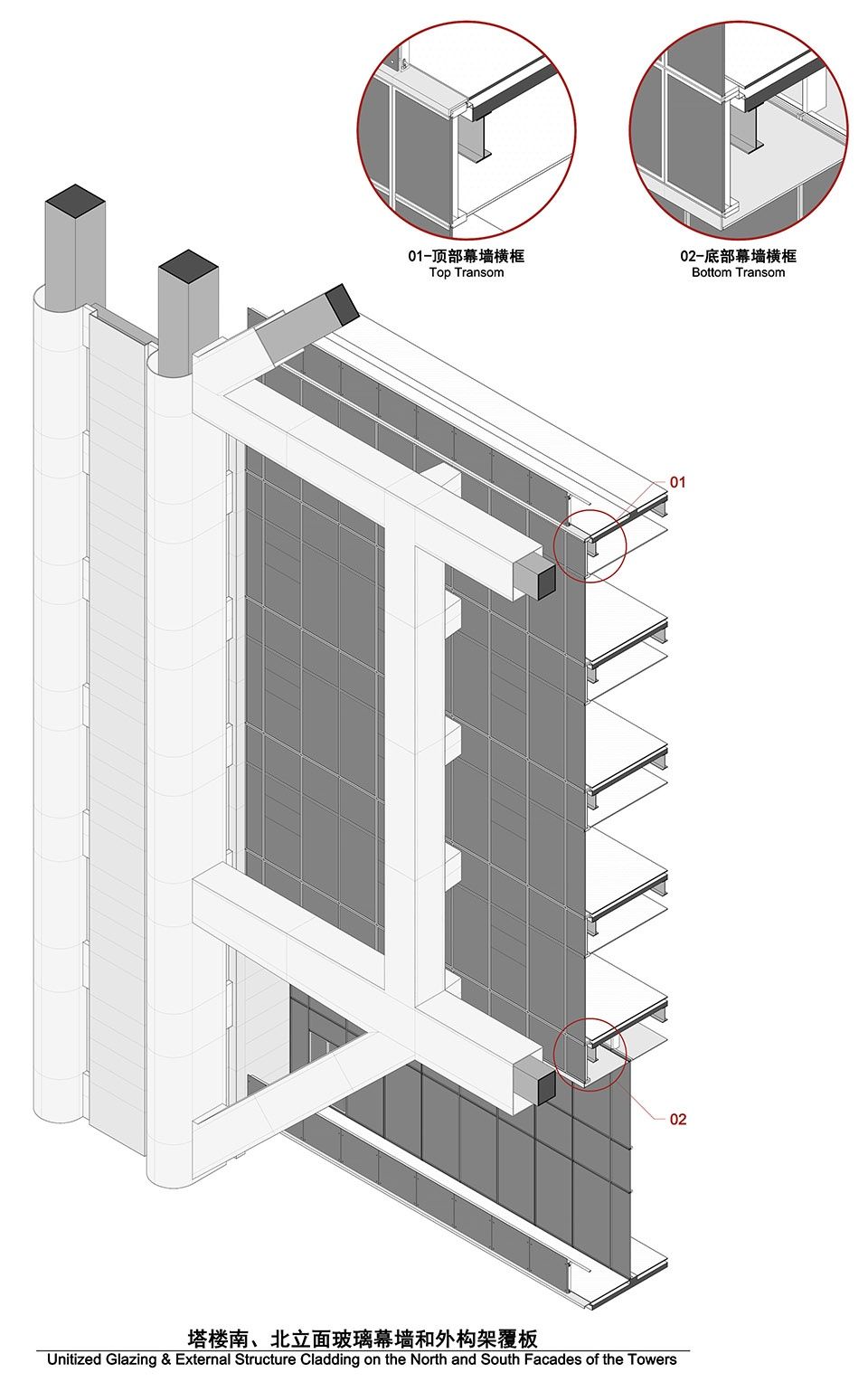

▼塔楼南、北立面幕墙细部图纸，
Unitized Glazing & External Structure Cladding on the North and South Facade of the towers

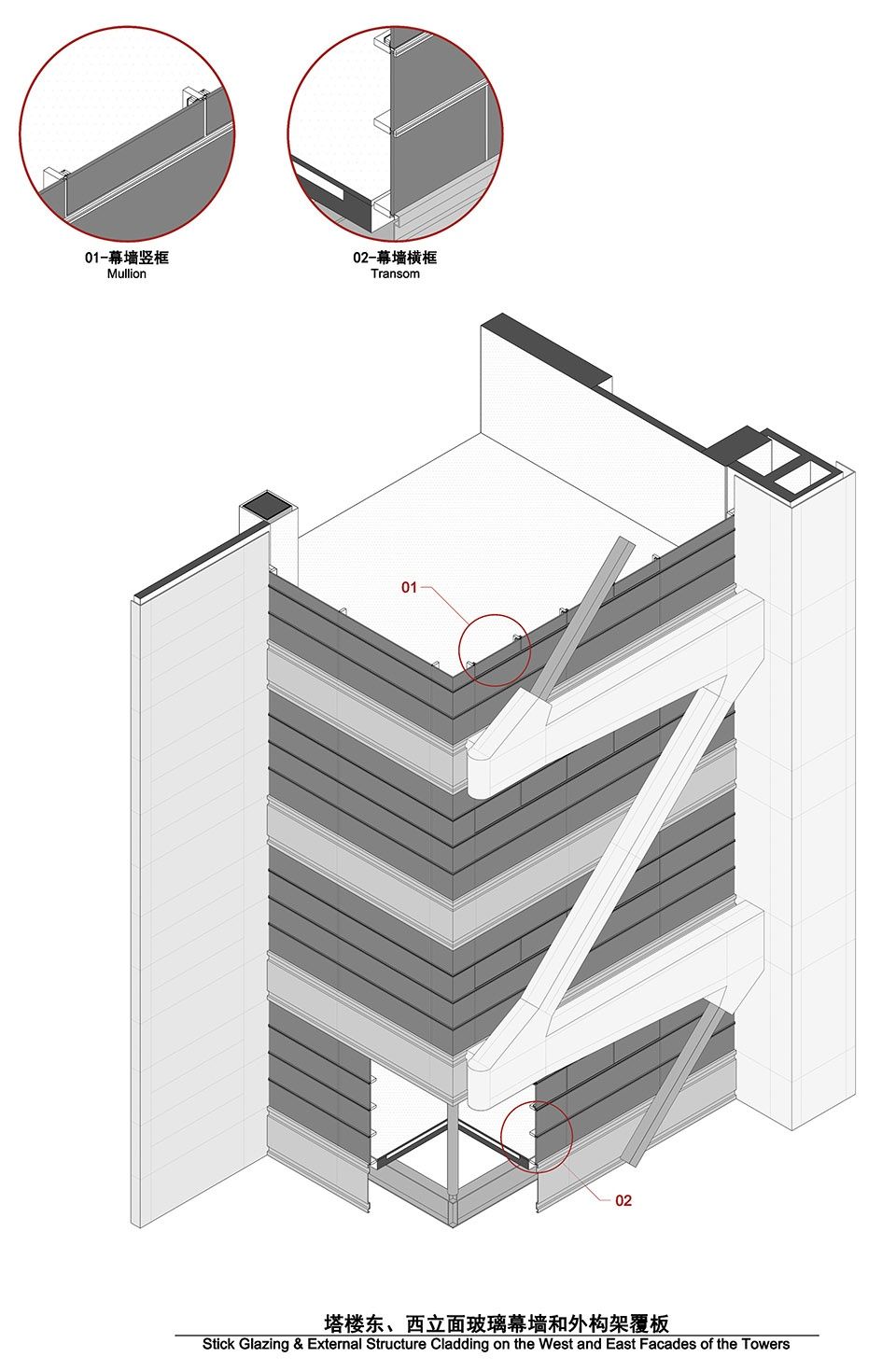

▼塔楼东、西立面幕墙细部图纸,
Stick Glazing & External Structure Cladding on the West and East Facade of the towers

外部构架的覆板系统从技术角度讲是整个建筑幕墙系统中最为复杂的部分，其中的一些节点包含多达五个结构分枝。为了保障建筑的最终落地效果，我们在方案阶段，就以预估的结构尺寸、不锈钢板规格、无死角安装这三个限定条件作为依据，对外部构架覆板进行了全方位的分格。同时在美学上，我们也对分格的位置做了细致的推敲，使得外部构架与整栋建筑保持统一的几何逻辑，并且展示出优雅的“裁剪比例”。

The cladding of the external structure is technically the most complicated part of the entire curtain wall system, with some nodes containing up to five structural branches. In order to guarantee the upmost quality through the completion of the project, at the schematic design stage it was considered to divide the external structure cladding into separate panels based on three conditions: these being the estimated structural dimensions, stainless steel plate specification and no dead angle installation. In addition this division is also aesthetically carefully weighed to make the external structure remain consistent with the geometric logic of the whole building, akin to a “tailor made dress”.

▼外部构架覆板，Exterior frame cladding plate

4.3 东侧主入口及雨篷
4.3 Main Entrance and Canopy on the East

东侧主入口雨篷位于两座塔楼之间，27米宽15米出挑，创造出一种戏剧化的入口体验，将人引领至70米高的中庭。雨篷的荷载由2组（每组2根）主悬臂梁和4根次悬臂梁承担。同时又借助雨篷下方门厅的结构，设置4个铰接支座来支撑4根次悬臂梁。这样不仅降低了次悬臂梁的扭矩，还分担了主悬臂梁的荷载，大幅缩小了悬臂梁的截面尺寸，使得主入口雨篷获得轻盈之感。此外，为了避免现场焊接产生的误差，主入口雨篷的结构构件全部采用工厂预制、现场栓接的方式，呈现出精致的工艺之美。

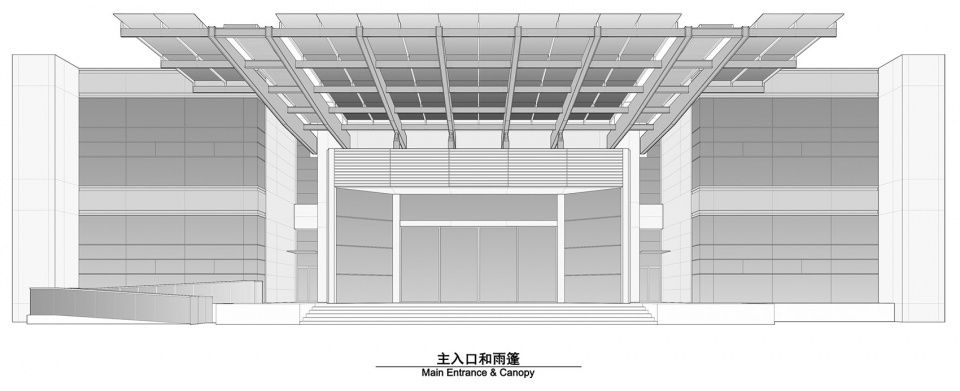

▼主入口和雨篷图纸，Main entrance & Canopy

Between the two towers, a 27-metre-wide glazed canopy with a 15-metre cantilever creates a dramatic entrance experience, leading to the 70m-high atrium. The load of the canopy is borne by 2 groups of primary cantilever beams (2 beams in each group) and 4 secondary cantilever beams supported by 4 brackets welded onto the structure of the foyer. This structural strategy not only reduces the torque of the secondary cantilever beams but also shares the loads on the primary cantilever beams, reducing the heights of the cantilever beams and endowing the canopy with a sense of lightness. In order to avoid any defects from welding on the site, all of the structural components of the main entrance canopy are prefabricated in factories and bolted on the site, setting a showcase for the art and beauty of craftsmanship.

▼主入口和雨篷，Main entrance & Canopy

4.4 南、北侧次入口及雨篷
4.4 Secondary Entrances and Canopies on the South and North

建筑的南入口和北入口采用相同的设计语言，通过双层通高且内退的玻璃幕墙形成引导性的入口空间。位于三层的玻璃幕墙外侧设有不锈钢圆管格栅屏风，与两侧的不锈钢巨柱构成了一个超尺度的门框，同时也形成了塔楼的基座。与之相对，雨篷被压低为单层高度，将入口空间由城市尺度转化为近人尺度。雨篷的结构采用悬臂与吊杆结合，并且同样采用预制建造的方式。

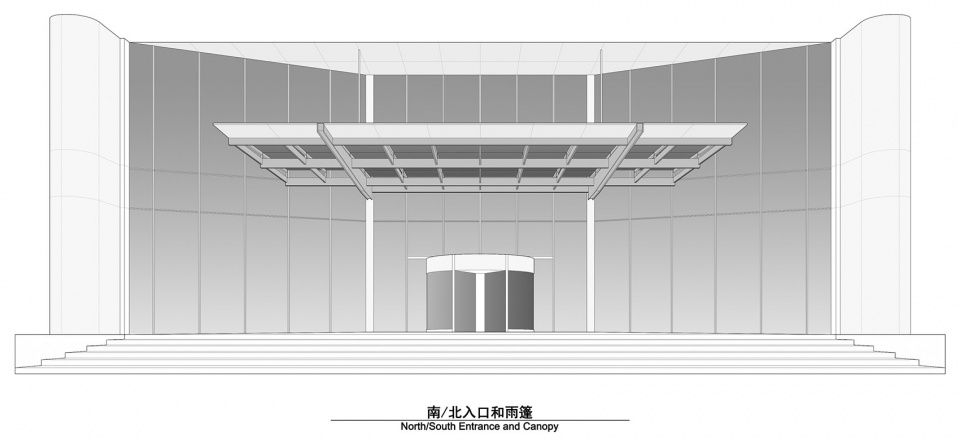

▼南/北入口和雨篷图纸，North/South Entrance & Canopy

The same design language is applied to the south and north entrances of the building, with a guiding entrance space being formed by a double-height glass curtain wall that retreats inwards. A screen comprised of stainless steel tubes is attached to the glass curtain wall on the 3rd floor, consisting of a super scale door frame combined with the stainless steel mega columns on both sides to form the base of the towers. By contrast, the canopy is reduced to a single-storey height, transforming the entrance space from an urban scale to a more approachable human scale. The structure of the canopy is of the combination of cantilever and suspender, again adopting the prefabricated construction method.

▼南/北入口和雨篷，North/South Entrance & Canopy

4.5 西侧地库出入口及通风格栅
4.5 Underground Parking Entrance and Ventilation Louvers on the West

建筑西侧首层设有地下车库的出入口和设备机房的通风百叶。如前文所述，这里的表皮分格和通风格栅布局被整合在一套几何秩序之中。

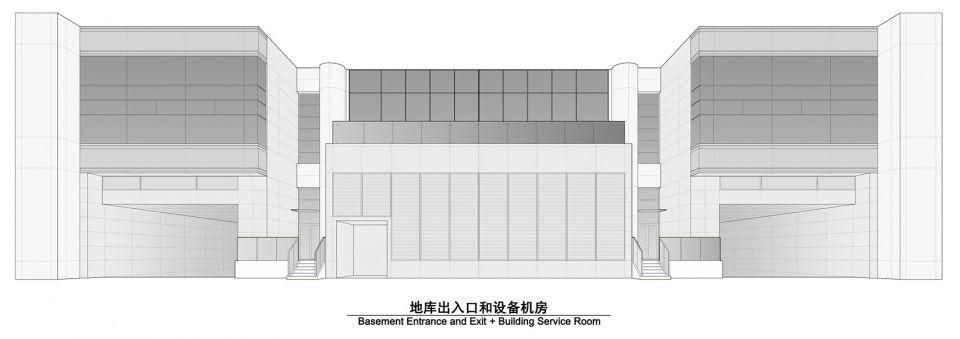

▼地库出入口和设备机房图纸，Basement Entrance and Exit + Building Service Room

4.6 中庭东侧索网玻璃幕墙
4.6 Cable-net Glazing on the East Side of the Atrium

中庭东立面采用索网玻璃幕墙，营造出一个通透的中庭空间。幕墙由竖索和横索共同承担荷载。其中竖索的上端通过锚具悬吊于中庭桁架的底部，下端通过预应力保持装置固定于下方横梁。横索的原理基本相同，固定于两根立柱之间，一端设有锚具而另一端设有预应力保持装置。最后通过夹具将玻璃以及竖、横索固定到一起，成为一个完整的索网玻璃幕墙体系。通过巧妙的设计，竖索和横索两端的锚具和预应力保持装置被完整地隐藏起来，创造出一个具备非凡通透性和简洁性的索网幕墙。

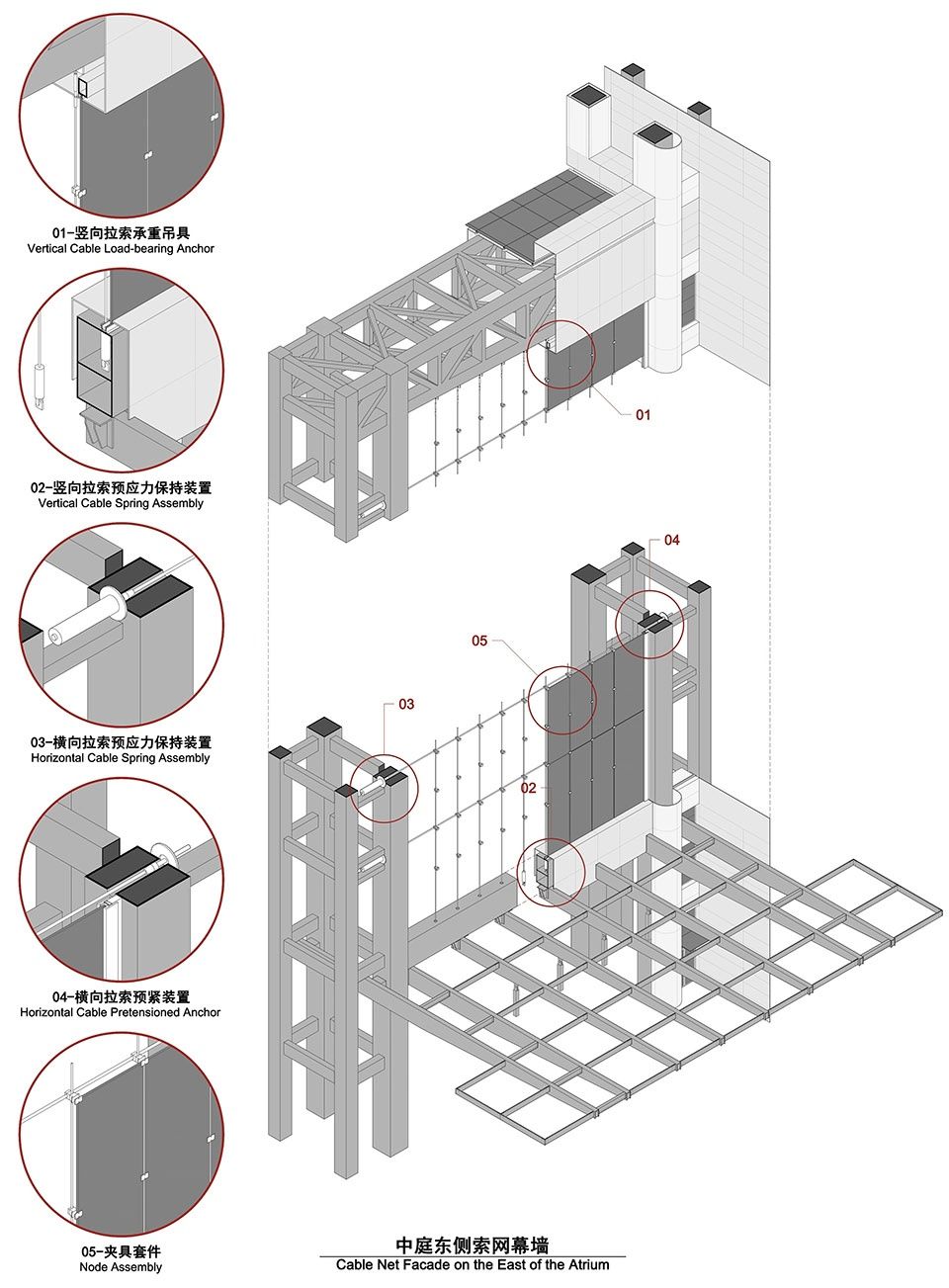

▼中庭东侧索网幕墙图纸，Cable Net Facade on the East of the Atrium

A cable-net glass curtain wall is used for the east facade of the atrium, creating a transparent atrium space. The load of the curtain wall is jointly born by vertical and horizontal cables. The upper end of the vertical cable is suspended from the bottom of the atrium truss by an anchor, while the lower end is fixed to the bottom beam through a spring assembly. The horizontal cable follows the same principle, being fixed between two columns. An anchor is provided at one end and a spring assembly at the other end. Finally, the glass panes and vertical and horizontal cables are fixed together by node assemblies to form a complete cable-net glass curtain wall. By hiding the anchors and spring assemblies in an ingenious way, the cable-net glass curtain wall is endowed with an extraordinary transparency and clarity.

▼中庭索网玻璃幕墙 – 室外，Exterior view of the atrium cable mesh glass curtain wall

▼中庭索网玻璃幕墙室内视觉，Interior view of the atrium cable mesh glass curtain wall

4.7 中庭西侧玻璃幕墙及空中廊桥
4.7 Glass Curtain Wall and Sky Bridges on the West Side of the Atrium

中庭西侧采用构件式玻璃幕墙，并布置有6个空中廊桥连接两座塔楼。空中廊桥不仅在结构上承担了玻璃幕墙的荷载，并且在空间上将中庭切分为两层一组的宜人尺度。

▼中庭西侧玻璃幕墙和空中廊桥图纸，
Stick Glazing & Sky Bridges on the West of the Atrium

The stick glazing combined with 6 sky bridges span between the two towers on the west side of the atrium. These sky bridges not only structurally bear the load of the glass curtain wall but also spatially break down the atrium into a more human scale with two stories as a group.

4.8 中庭吊顶系统与维护系统
4.8 Ceiling System and Maintenance System of the Atrium

中庭顶部悬吊有吊顶系统，其云朵状吊顶板采用穿孔铝板，可以过滤日光，同时又集成晚间照明。吊顶板上方设有维护平台，工人可由此清洗上方的玻璃顶，或者穿戴安全装备到下方更换灯具。中庭四面幕墙的维护则借由安装在中庭顶部四周的轨道吊篮系统来实现。

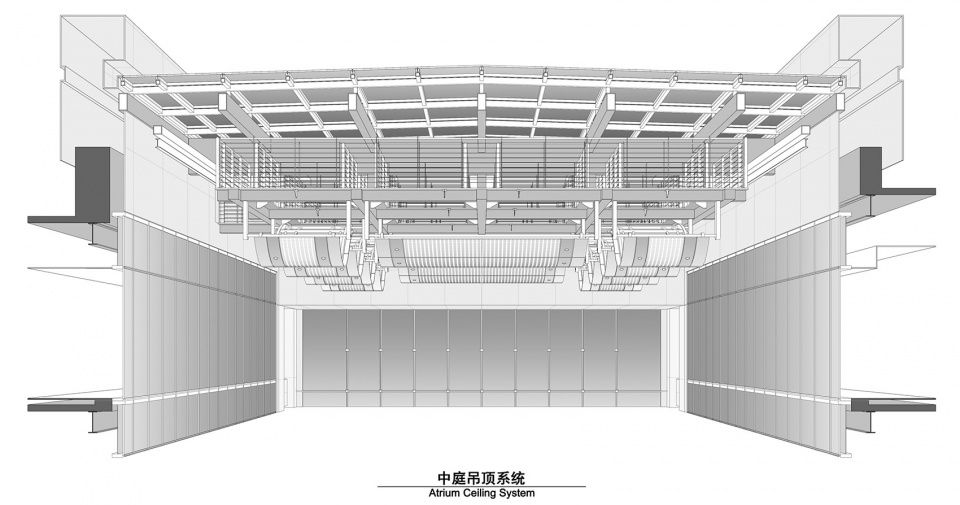

▼中庭吊顶系统图纸， Atrium ceiling system

Suspended from the atrium, the ceiling system filters sunlight and makes the light diffuse gently, whereas at night, the integrated luminaires act as atrium lighting. The maintenance catwalks of the ceiling system provide an access to clean the glass roof and ceiling panels or replace the luminaires. The maintenance of the four curtain walls of the atrium is realized through a BMU on a horizontal track system installed at the top of the atrium.

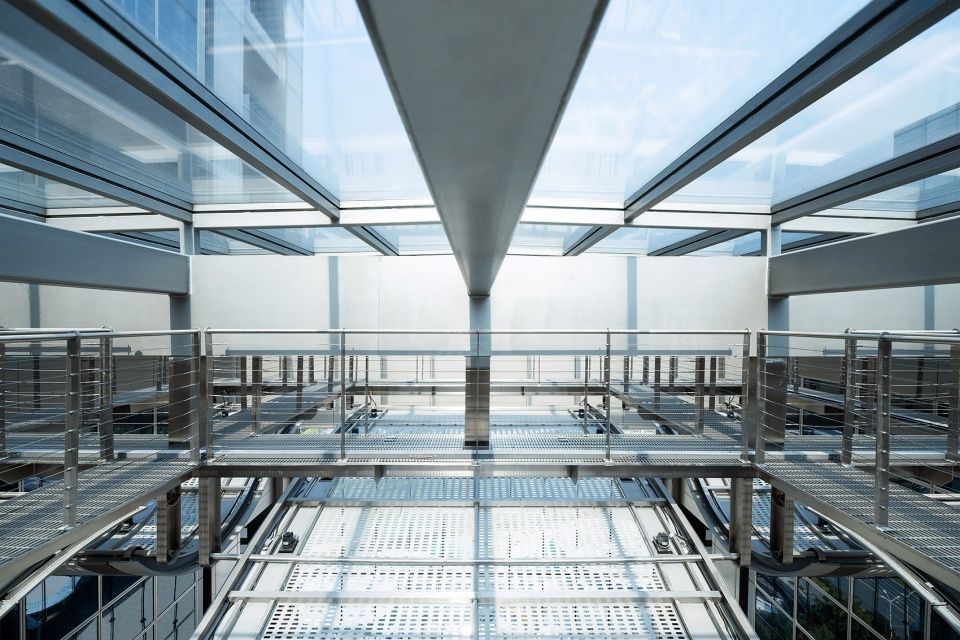

▼中庭吊顶上方的维护马道，Maintenance bridleway above the ceiling of the atrium

▼中庭顶部擦窗机轨道，Window washer track of the atrium

4.9 建筑外幕墙维护系统
4.9 External Facade Maintenance

建筑室外配备2部伸缩臂式建筑维护装置，分别安装在两座塔楼的电梯机房上方，伸缩臂工作半径35m，可完整涵盖整个建物外立面。该系统的旋转立柱可以上下伸缩，在工作状态时将伸缩臂上升到屋顶围护构架之上；在驻定状态时将伸缩臂隐藏于屋顶围护构架之内。

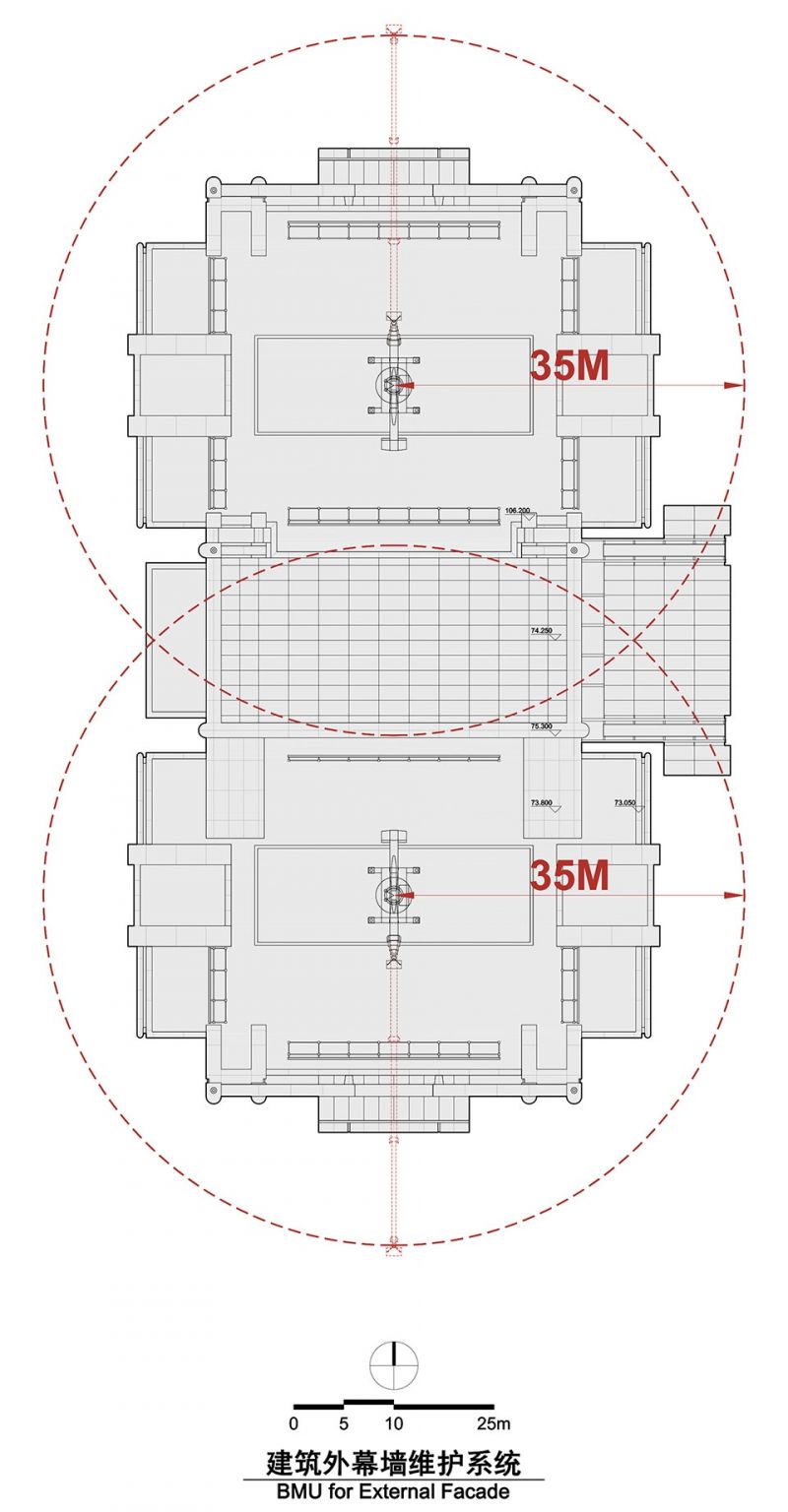

▼建筑外幕墙维护系统，BMU for External Facade

5.0 总结：为建造而设计
5.0 Summary: Design to Build

从2013年启动概念设计竞赛，到2021年竣工并正式投入使用，双擎大厦项目跨越了近十年时间。在这期间，从方案的十余轮次大改到结构的几经论证与超限审查；从项目中断期间的迷茫到重启后的快马加鞭；从幕墙的可行性优化到各种现场问题的补救，从后期项目预算的收紧到疫情防控对工程进度的阻碍，双擎大厦经历了所有大型建筑推进过程中的艰辛。对本项目而言，我方作为方案建筑师，虽然在合同层面上未能获得项目的控制权，但是令我们倍感荣幸的是，甲方在决策层面上给予我们极大的话语权，这也间接促成我们的意见能够对项目形成影响力。在这十年中，我们始终与甲方、设计院、各专业顾问、承包商和供应商保持高频率沟通，确保项目推进过程中的新问题和新变化得到妥善解决，用一座高完成度的建筑作品兑现了最初的设计承诺。

From the launch of the design competition in 2013 to the final completion in 2021, the Exo Towers is a project lasted nearly a decade being put in use in 2022. With more than ten rounds of major changes to the scheme, combined with to the irregular high-rise building reviews, from the confusion during the suspension of the project to the fast pace after the restart, in addition to the optimization of curtain wall feasibility to the remedy of various on-site defeats, budget restrictions, and the constraints of epidemic control policies, the Exo Towers project has experienced all the challenges and frustration of any large construction projects. However the successful completion of this project is a testament to shared passion of the design team at UUA, the client and all professional parties to find answers to all the challenges faced. It is this shared objective and perseverance by all involved to see this landmark building finished as close to the original design intent.

▼双擎大厦全景鸟瞰，Bird’s eye view of the building
